Custom Fiber Collimators and Fiber Optic Collimator Design

A fiber collimator must match the fiber mode, numerical aperture, wavelength, required beam diameter, and mechanical interface to achieve stable coupling and low optical loss.

Shanghai Optics designs and manufactures custom fiber collimators for single-mode, multimode, and polarization-maintaining fibers, including configurations for SMA, FC/APC, and FC/PC interfaces. Depending on the required beam size and optical performance, designs may use GRIN, aspheric, spherical, or multi-element optics.

For applications requiring controlled beam diameter, low insertion loss, reduced back reflection, or stable fiber-to-free-space coupling, the optical and mechanical design should be evaluated together.

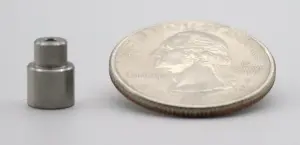

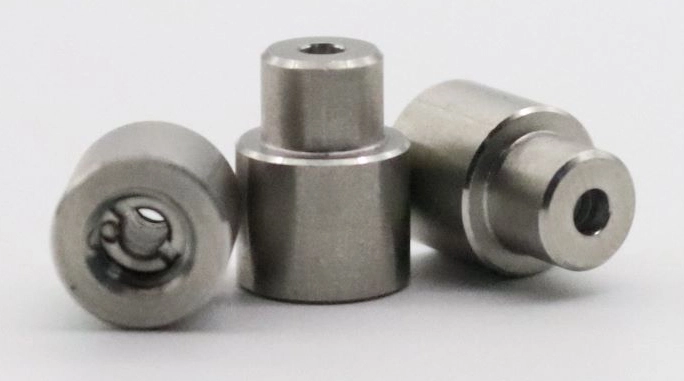

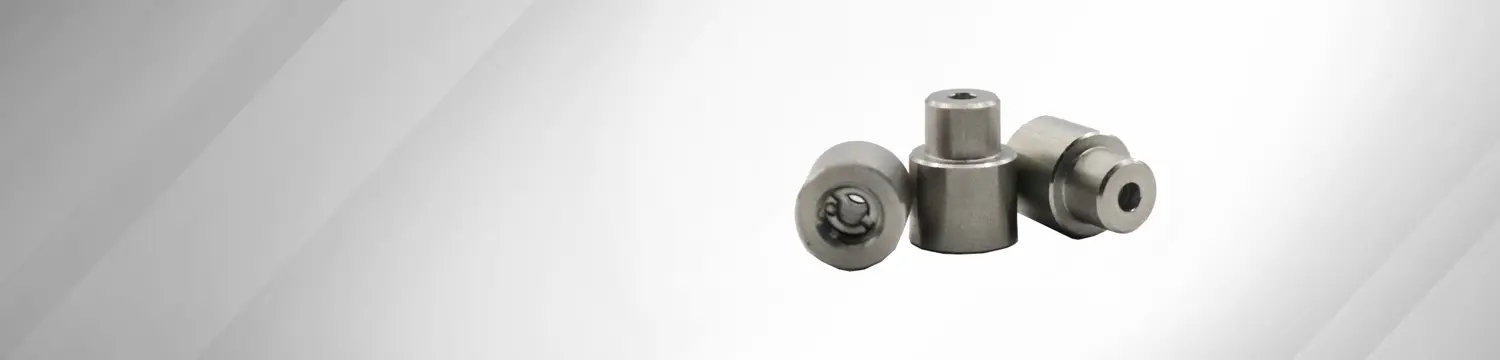

Fiber Collimator made of stainless steel; size: ∅6.81mm x 9.27mm

Fiber Collimator Design Considerations

The required fiber collimator design depends on the fiber output and the target free-space beam.

Key parameters typically include:

  • Fiber type and mode field diameter
  • Numerical aperture
  • Operating wavelength
  • Required beam diameter
  • Working distance
  • Insertion loss
  • Return loss or back reflection
  • Polarization requirements
  • Connector type
  • Mechanical envelope and alignment tolerance

For single-mode fibers, the mode field diameter and wavelength strongly influence beam divergence. A smaller mode field generally produces a larger divergence angle and therefore requires careful selection of focal length and clear aperture.


GRIN, Aspheric, and Spherical Fiber Collimators

The optical architecture depends largely on the required beam diameter, wavelength, and package size.

  • GRIN lenses are commonly used for compact fiber collimators because they can provide focusing or collimation in a very small package.
  • Aspheric lenses are often selected when larger beam diameters or improved aberration control are required, particularly for higher-NA sources.
  • Spherical singlets or doublets may be used for larger beam sizes or applications where a larger optical assembly is acceptable.

The correct choice depends on the required beam quality, focal length, wavelength, insertion loss, packaging, and alignment tolerance.


Free-Space Fiber-to-Fiber Coupling

Two fiber collimators can be used to transmit light between fibers through a free-space optical path.

The first collimator converts the diverging fiber output into a near-collimated beam. The second receives the beam and focuses it into the receiving fiber.

Coupling efficiency depends strongly on:

  • Angular alignment
  • Lateral alignment
  • Beam diameter
  • Working distance
  • Wavefront quality
  • Fiber mode matching

For single-mode and polarization-maintaining systems, small alignment errors can produce significant coupling loss, so mechanical stability is an important part of the collimator design.


Fiber Collimator Applications

Fiber collimators are commonly used in:

  • Laser systems: Coupling light between fibers and free-space optical components.
  • Optical communications: Routing and transmitting optical signals through free-space sections.
  • Interferometry: Producing controlled beams from fiber-delivered laser sources.
  • Spectroscopy and sensing: Coupling fiber-delivered light into instruments, samples, or detectors.
  • Test and measurement systems: Creating stable fiber-to-free-space optical interfaces.
  • Fiber-coupled lasers: Controlling output beam diameter and divergence before downstream optics.



Custom Fiber Collimator Design and Manufacturing

Shanghai Optics designs and manufactures custom fiber optic collimators around the required fiber type, wavelength, beam diameter, optical performance, and mechanical interface.

Custom designs can support:

  • Single-mode fibers
  • Multimode fibers
  • Polarization-maintaining fibers
  • SMA, FC/APC, and FC/PC interfaces
  • GRIN and aspheric optical designs
  • Custom beam diameters and focal lengths
  • Application-specific AR coatings
  • Custom stainless-steel housings and mechanical interfaces

For precision systems, optical alignment, connector geometry, lens positioning, and mechanical stability can be controlled as part of the complete assembly.

Fiber Collimator FAQs

The beam diameter depends primarily on the fiber mode field, numerical aperture, wavelength, and the focal length of the collimating optic. For single-mode fibers, a smaller mode field generally produces greater divergence, which can result in a larger collimated beam for a given optical design.

GRIN lenses are useful when a compact package is required. Their internal refractive-index gradient allows focusing and collimation in a short optical path, making them well suited to small fiber-collimator assemblies.

An aspheric design can be preferable when improved aberration control or a larger beam diameter is required. It is often considered for higher numerical aperture sources or applications where beam quality is more demanding.

Useful starting parameters include fiber type, mode field diameter or numerical aperture, wavelength, required beam diameter, working distance, connector type, polarization requirements, insertion-loss target, and mechanical constraints.

Yes. A fiber collimator can operate in either direction. It can convert diverging light from a fiber into a near-collimated free-space beam, or focus incoming free-space light into a fiber.

Insertion loss can result from fiber-to-lens alignment errors, angular misalignment, optical surface reflections, mode mismatch, aberrations, contamination, and mechanical instability. Alignment and coating design are therefore important parts of the overall system.

Yes. Shanghai Optics can develop custom collimator assemblies for polarization-maintaining fibers, with optical and mechanical alignment designed around the application requirements.

Need a Custom Fiber Collimator?

Share your fiber type, wavelength, mode field diameter or numerical aperture, required beam diameter, working distance, connector type, and mechanical constraints with our engineering team.

Shanghai Optics can evaluate the optical and mechanical requirements and develop a fiber collimator for your system.
