Overview

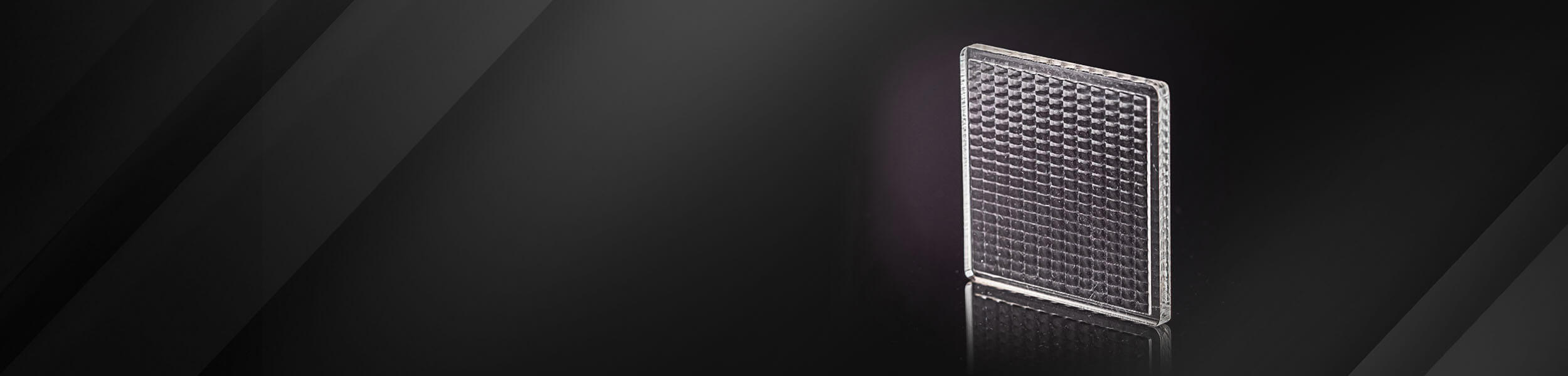

Shanghai Optics manufactures custom microlens arrays in 1D and 2D configurations for demanding optical applications. We provide circular, square, hexagonal, and custom geometries with tailored lens pitch, focal length, substrate materials, and optical coatings to meet specific system requirements.
At Shanghai Optics, we manufacture 1D and 2D microlens arrays in various configurations, sizes, and focal lengths. These arrays are manufactured from high-quality fused silica, providing excellent optical performance from 193 nm to 2.5 μm.. The refractive index is 1.561 at 248 nm and 1.444 at 1550 nm, making them suitable for UV, visible, and infrared optical systems.
Using advanced photolightographic techniques and semiconductor processing technologies, Shanghai Optics produces microlens arrays with precise lens positioning and highly accurate lens profiles. We offer custom microlens arrays tailored to customer specifications, including custom geometries, lens pitch, focal lengths, and coatings. Our experienced engineering team provides design consultation and supports projects from prototype development to OEM volume production.
Microlens Array Capabilities
Shanghai Optics provides:
- 1D and 2D Microlens Arrays
- Circular, Square and Hexagonal Geometries
- Custom Lens Pitch and Focal Length
- UV Fused Silica and Optical Glass Substrates
- AR and Custom Optical Coatings
- Prototype to OEM Volume Production
- Engineering and Design Support
Uniform Light Distribution and Advantages
Shanghai Optics’ microlens arrays provide high fill factor, uniform light distribution, and excellent beam homogenization performance for demanding optical applications.
Key advantages include:
- High optical efficiency
- Uniform beam intensity
- Large field of view
- Low aberration and distortion
- High fill factor (up to 98%)
- Compact and highly integrated designs
These performance characteristics make microlens arrays suitable for advanced imaging, illumination, laser, and sensing systems.
Types of Microlens Arrays
1. Refractive Microlens Arrays: Refractive microlens arrays manipulate light through refraction and are commonly used for:
Beam Shaping
Beam Transformation
Imaging Systems
Illumination Systems
Shanghai Optics offers custom refractive microlens arrays with various geometries, focal lengths, and substrate materials.
2.Diffractive Microlens Arrays
Diffractive microlens arrays provide precise control of light distribution and are suitable for:
Optical Communication
Beam Splitting
Medical Laser Systems
Optical Sensing
Custom designs are available based on customer requirements.
3. Square Microlens Arrays

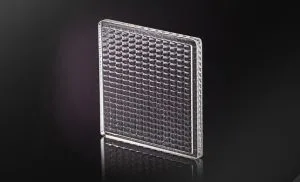

Shanghai Optics manufactures Square Microlens Arrays for beam homogenization and beam shaping applications.
Features include:
Fill Factor up to 98%
Reduced Zero-Order Hot Spots
Standard Size: 10 mm × 10 mm
Custom Sizes Available
Multiple Lens Pitch Options
Custom Focal Lengths
4. Fly’s Eye Microlens Arrays
Fly’s Eye Microlens Arrays are specialized lenslet arrays designed for beam homogenization and uniform illumination.
Shanghai Optics provides:
Square and Rectangular Geometries
Anamorphic or Spherical Surfaces
High Uniformity Illumination
Custom Channel Configurations
Precision Optical Alignment
Applications include:
Laser Beam Homogenization
Projection Optics
Semiconductor Equipment
Fluorescence Microscopy
Medical Laser Systems
Microlens Arrays for UV, VIS and NIR Video Imaging Cameras
Shanghai Optics developed a custom microlens array for UV, VIS, and NIR video imaging cameras, featuring an 11 × 11 lens configuration with a 3000 μm pitch and compact dimensions of 7 mm × 8 mm.
The array was designed to improve spectral resolution, spatial resolution, and imaging speed while maintaining excellent optical performance across ultraviolet, visible, and near-infrared wavelengths.
This project demonstrates Shanghai Optics’ ability to develop precision microlens arrays tailored to demanding imaging applications.
Manufacturing Process and Quality Assurance
Shanghai Optics manufactures microlens arrays using:
- Photolithography
- Semiconductor Processing Technology
- Precision Surface Profiling
- High-Accuracy Lens Alignment
- Optical Interferometric Testing
Each microlens array undergoes strict quality inspections to ensure:
- Accurate lens geometry
- High fill factor
- Excellent wavefront quality
- Uniform optical performance
- Consistent manufacturing repeatability
Factory Standard Specifications
Parameter | Specification |
Diameter | +0, -0.1 mm |
Surface Accuracy | λ/2 @ 633 nm or better |
Thickness | ±0.2 mm |
Centration | ±0.04 mm |
Surface Quality | 20-10 |
Bevel | 0.2 mm typical |
Materials | SK2, BK7, Fused Silica and more |
Contact us for manufacturing limits or custom specifications.
Need a Custom Microlens Array for Your Optical System?
Shanghai Optics provides custom microlens arrays with tailored lens geometries, focal lengths, substrate materials, and coatings for demanding optical applications. Our engineering team is ready to discuss your project requirements and help identify the most suitable solution.
