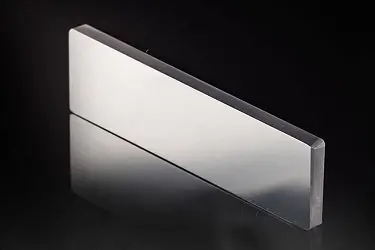

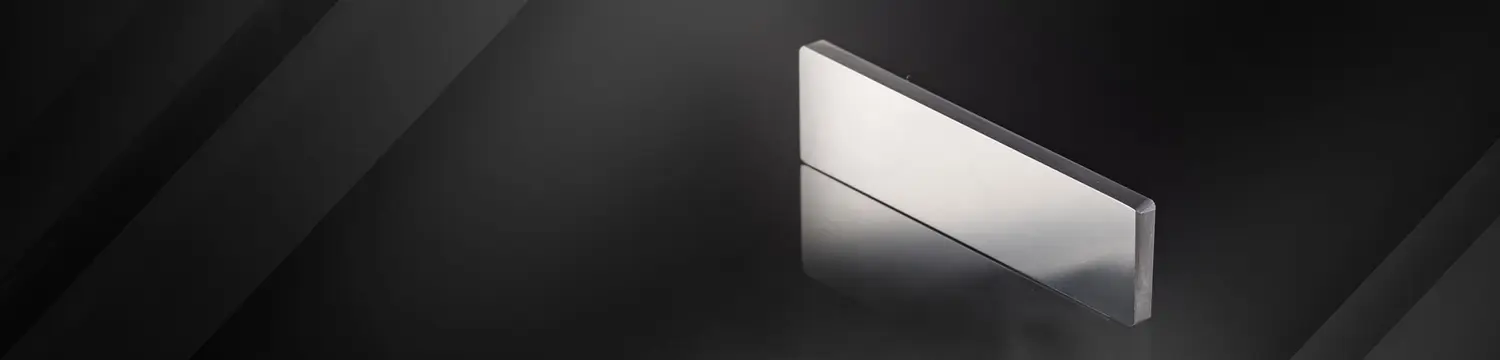

Shanghai Optics is a custom optics manufacturer with over 60 years of optics manufacturing experience. We produce high precision Metalized Mirrors according to customers’ specifications.
Aluminum has a high reflectance over the entire visible and near infrared spectrum. It is simple to deposit as a thin film, making it the ideal choice for most non-critical applications. The aluminum is over coated with a single layer of MgF2 to make it considerably more durable than bare aluminum.
There are three degrees of flatness: l/4, l/10 and l/20. The l/4 and l/10 mirrors are deposited on BK7 substrates but the l/20 mirrors use synthetic quartz resulting in significantly better thermal stability.
A broad selection of sizes is offered as standard. Other sizes can be supplied on request. Mirrors up to 1 inch in diameter have a ground rear surface but all other mirrors are polished on the rear face.
Key Features
- High reflectance over entire visible and NIR spectrum
- Aluminum overcoated with MgF2 for high durability
- Ideal for non-critical applications
- Available with l/4 surface flatness
- Synthetic quartz and Zerodur available for high thermal stability
- Standard diameters from 5.0 to 152.4mm
Factory Standard
- Surface flatness: Lambda/4
- Diameter: +0, -0.2mm
- Surface quality: 40-20
- Parallelism: 90% diameter
- Bevel: 0.2mmx45° typical
- Laser damage threshold: 0.4J/cm2 for 532nm @10ns pulse (measured)
- Durability: to MIl-C-675
- Reflectance: R>88% (350-2000nm)
Contact us for manufacturing limit or custom specifications.
Metallized Mirrors Round | All measurements in mm | ||||
| Part Number | Flatness | Diameter, D | Diameter, D | Thickness | Material |
| (Inches) | (mm) | (mm) | |||
 /4 | 0.2 | 5 | 3 | BK7 | |
| /4 | 0.39 | 10 | 3 | BK7 | |
| /4 | 0.5 | 12.7 | 5 | BK7 | |
| /4 | 0.79 | 20 | 5 | BK7 | |
| /4 | 0.98 | 25 | 5 | BK7 | |
| /4 | 1 | 25.4 | 5 | BK7 | |
| /4 | 1.18 | 30 | 5 | BK7 | |
| /4 | 1.57 | 40 | 6 | BK7 | |
| /4 | 1.97 | 50 | 8 | BK7 | |
| /4 | 2 | 50.8 | 8 | BK7 | |
| /4 | 3 | 76.2 | 12 | BK7 | |
| /4 | 4 | 101.6 | 15 | BK7 | |
| /4 | 6 | 152.4 | 20 | BK7 | |
| /10 | 0.2 | 5 | 3 | BK7 | |
| /10 | 0.39 | 10 | 3 | BK7 | |
| /10 | 0.5 | 12.7 | 5 | BK7 | |
| /10 | 0.59 | 15 | 5 | BK7 | |
| /10 | 0.79 | 20 | 5 | BK7 | |
| /10 | 0.98 | 20 | 5 | BK7 | |
| /10 | 1 | 25.4 | 5 | BK7 | |
| /10 | 1.18 | 30 | 5 | BK7 | |
| /10 | 1.57 | 40 | 6 | BK7 | |
| /10 | 2 | 50.8 | 8 | BK7 | |
| /10 | 3 | 76.2 | 12 | BK7 | |
| /10 | 4 | 101.6 | 17 | Zerodur® | |
| /10 | 6 | 152.4 | 25 | Zerodur® | |
| /10 | 0.5 | 12.7 | 6 | SFS | |
| /10 | 1 | 25.4 | 6 | SFS | |
| /10 | 2 | 50.8 | 10 | SFS | |
Metallized Mirrors, Square & Rectangular | All measurements in mm | ||||
| Part Number | Flatness | Dimensions | Thickness, T | Material | |
|---|---|---|---|---|---|
| (Inches) | (mm) | (mm) | |||
| a x b | a x b | ||||
| l/4 | 0.39 x 0.59 | 10.0 x 15.0 | 5 | BK7 | |
| l/4 | 0.50 x 0.50 | 12.7 x 12.7 | 3 | BK7 | |
| l/4 | 0.79 x 0.79 | 20.0 x 20.0 | 5 | BK7 | |
| l/4 | 0.98 x 0.98 | 25.0 x 25.0 | 5 | BK7 | |
| l/4 | 0.98 x 1.38 | 25.0 x 35.0 | 5 | BK7 | |
| l/4 | 1.18 x 1.18 | 30.0 x 30.0 | 5 | BK7 | |
| l/4 | 1.57 x 1.57 | 40.0 x 40.0 | 6 | BK7 | |
| l/4 | 1.57 x 1.97 | 40.0 x 50.0 | 8 | BK7 | |
| l/4 | 1.97 x 1.97 | 50.0 x 50.0 | 8 | BK7 | |
| l/4 | 3.94 x 3.94 | 100.0 x 100.0 | 15 | BK7 | |
| l/10 | 0.39 x 0.39 | 10.0 x 10.0 | 3 | BK7 | |
| l/10 | 0.39 x 0.59 | 10.0 x 15.0 | 5 | BK7 | |
| l/10 | 0.50 x 0.50 | 12.7 x 12.7 | 3 | BK7 | |
| l/10 | 0.59 x 0.59 | 15.0 x 15.0 | 3 | BK7 | |
| l/10 | 0.79 x 0.79 | 20.0 x 20.0 | 5 | BK7 | |
| l/10 | 0.98 x 0.98 | 25.0 x 25.0 | 5 | BK7 | |
| l/10 | 0.98 x 1.38 | 25.0 x 35.0 | 5 | BK7 | |
| l/10 | 1.18 x 1.18 | 30.0 x 30.0 | 5 | BK7 | |
| l/10 | 1.57 x 1.97 | 40.0 x 50.0 | 8 | BK7 | |
| l/10 | 1.97 x 1.97 | 50.0 x 50.0 | 8 | BK7 | |
| l/10 | 3.94 x 3.94 | 100.0 x 100.0 | 15 | BK7 | |
| l/20 | 0.98 x 0.98 | 25.0 x 25.0 | 6 | Fused Silica | |
